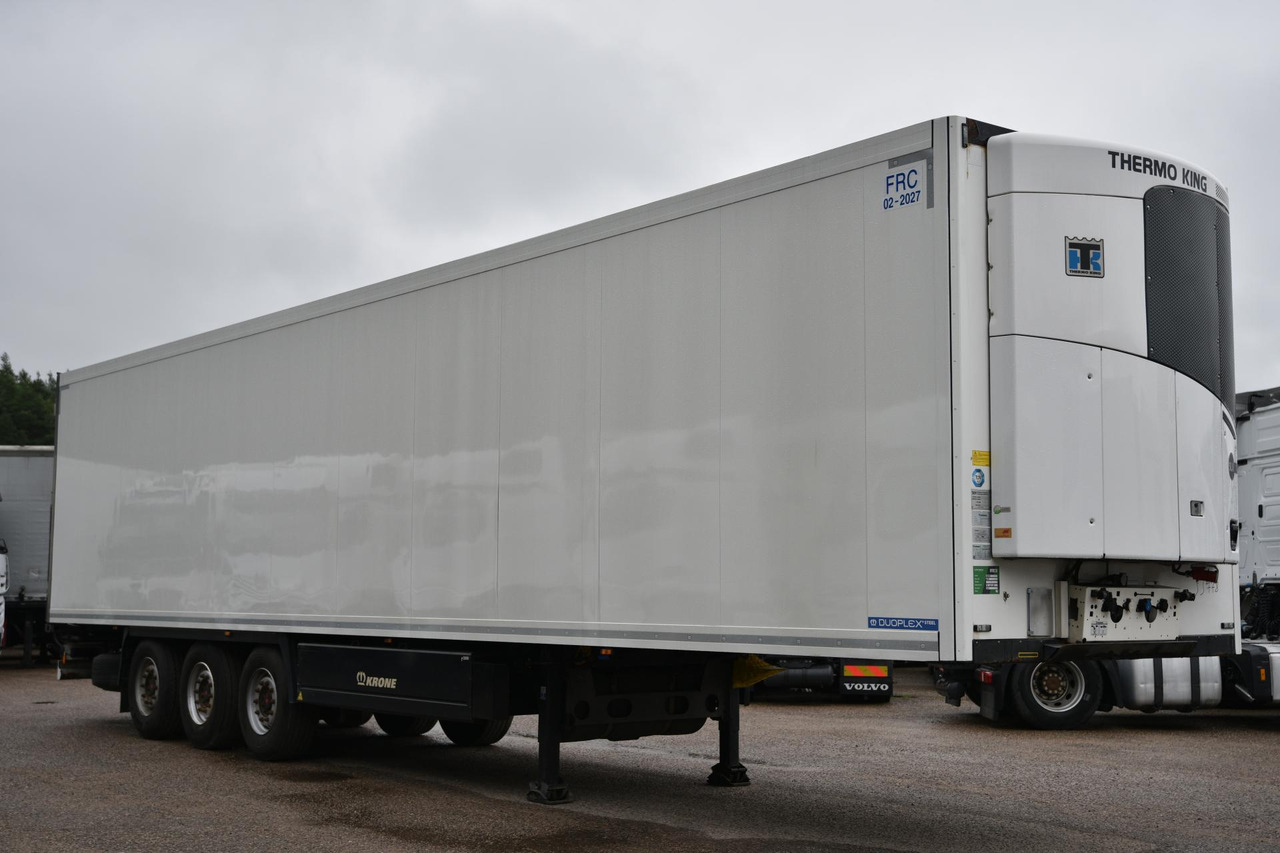

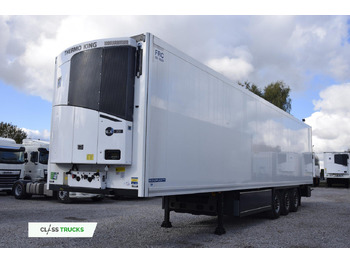

Refrigerator semi-trailer Krone SDR Double Deck Cool Liner FP60 ThermoKing SLXi 300 Lifting Axle

Technical specifications

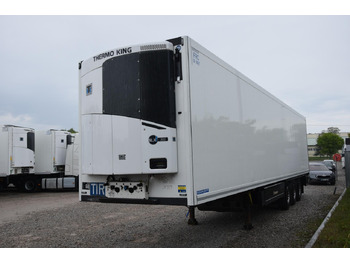

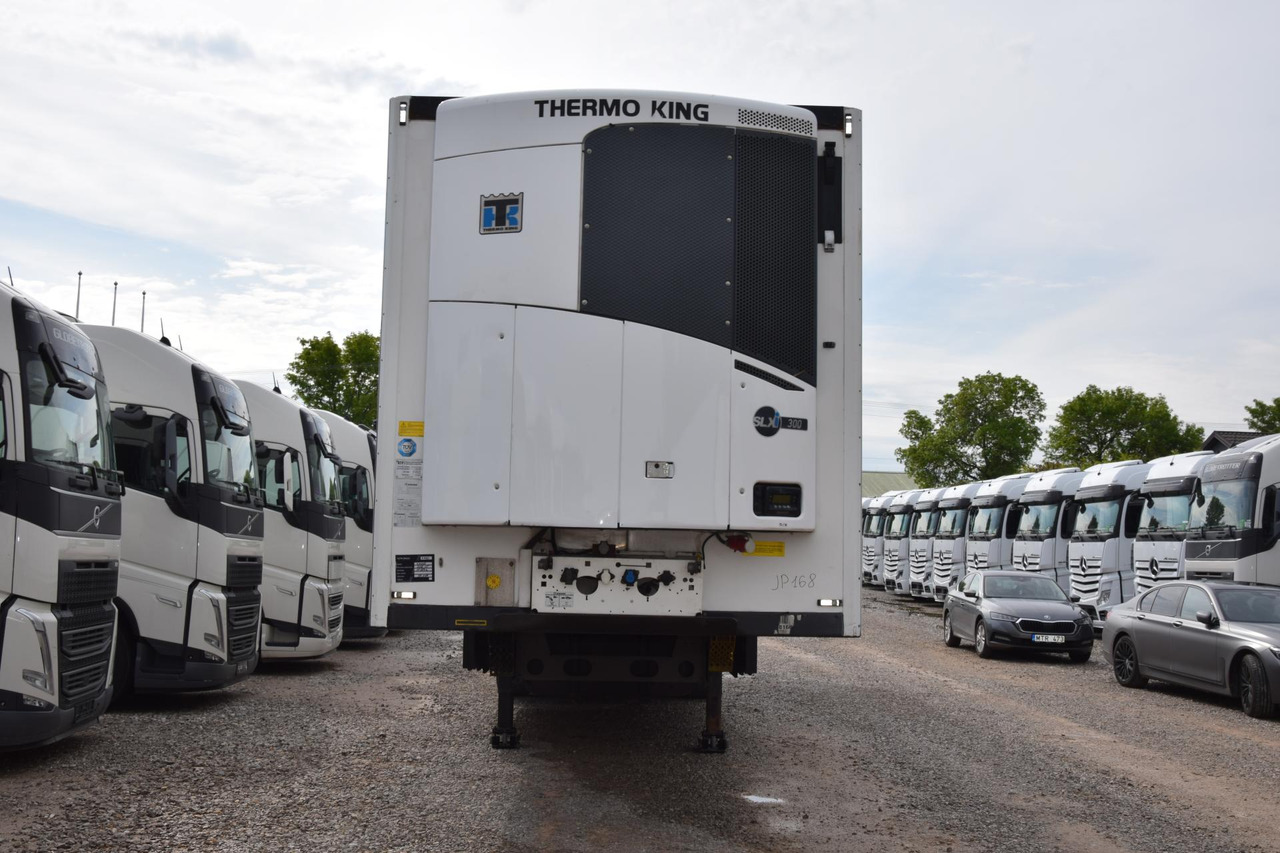

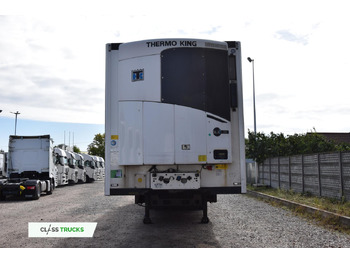

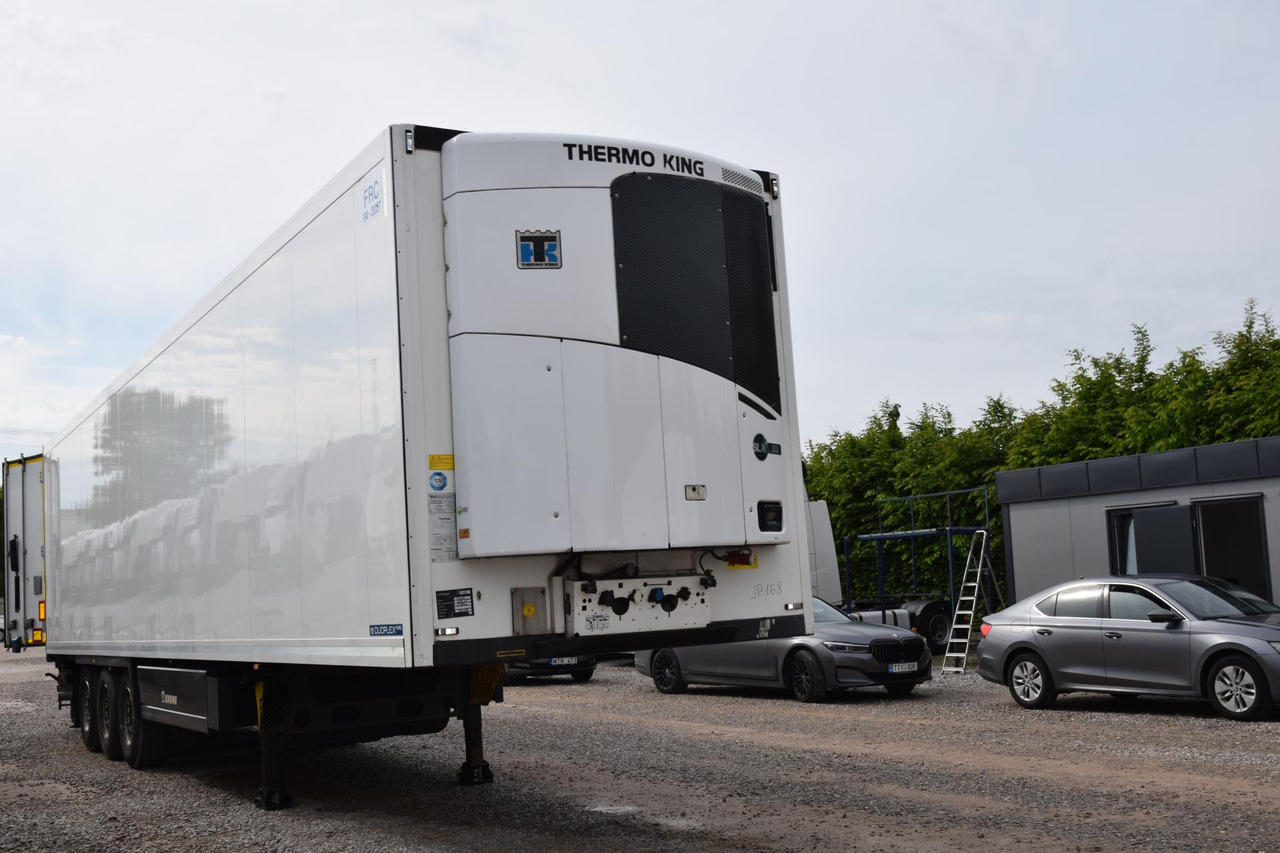

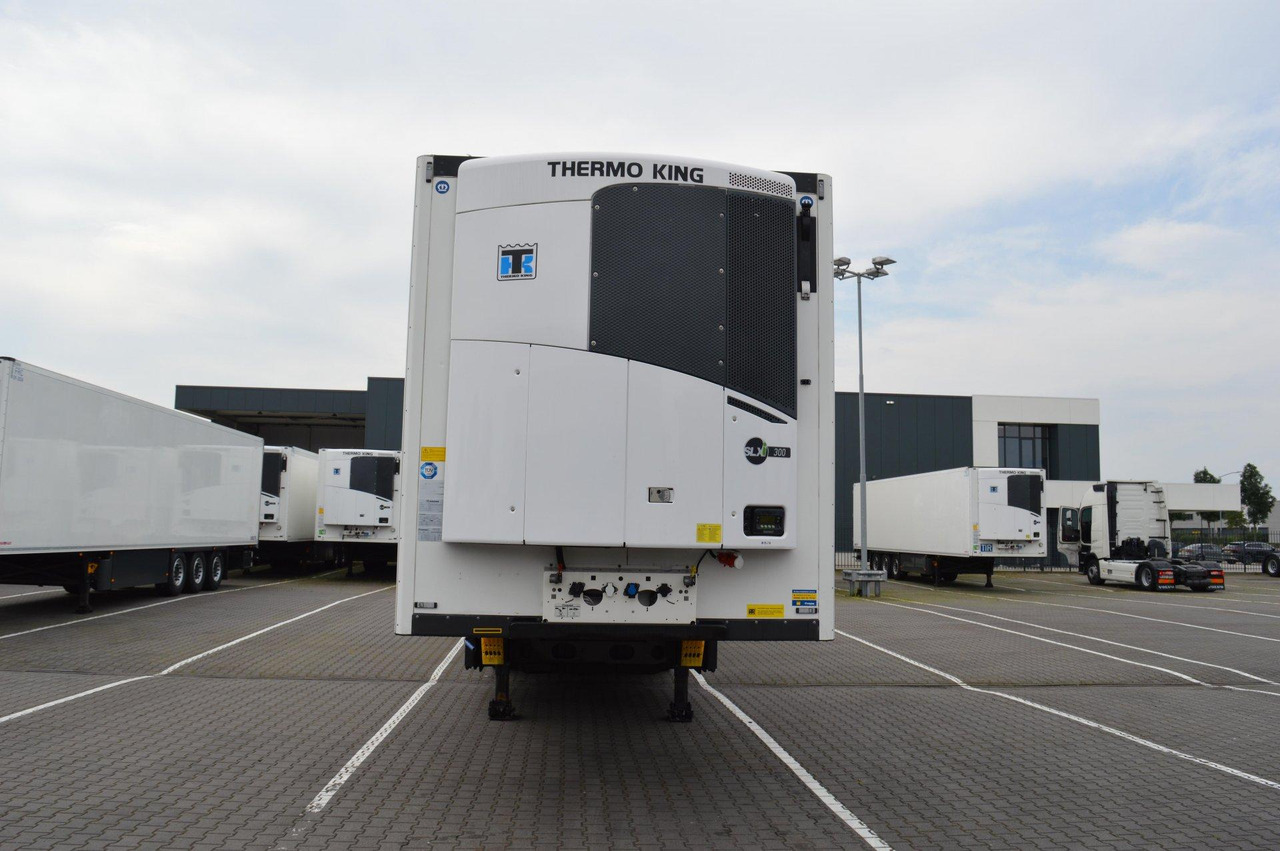

Cooling unit - THERMO KING SLXi 300, diesel and electrical

Axles producer - SAF axles

Full air suspension

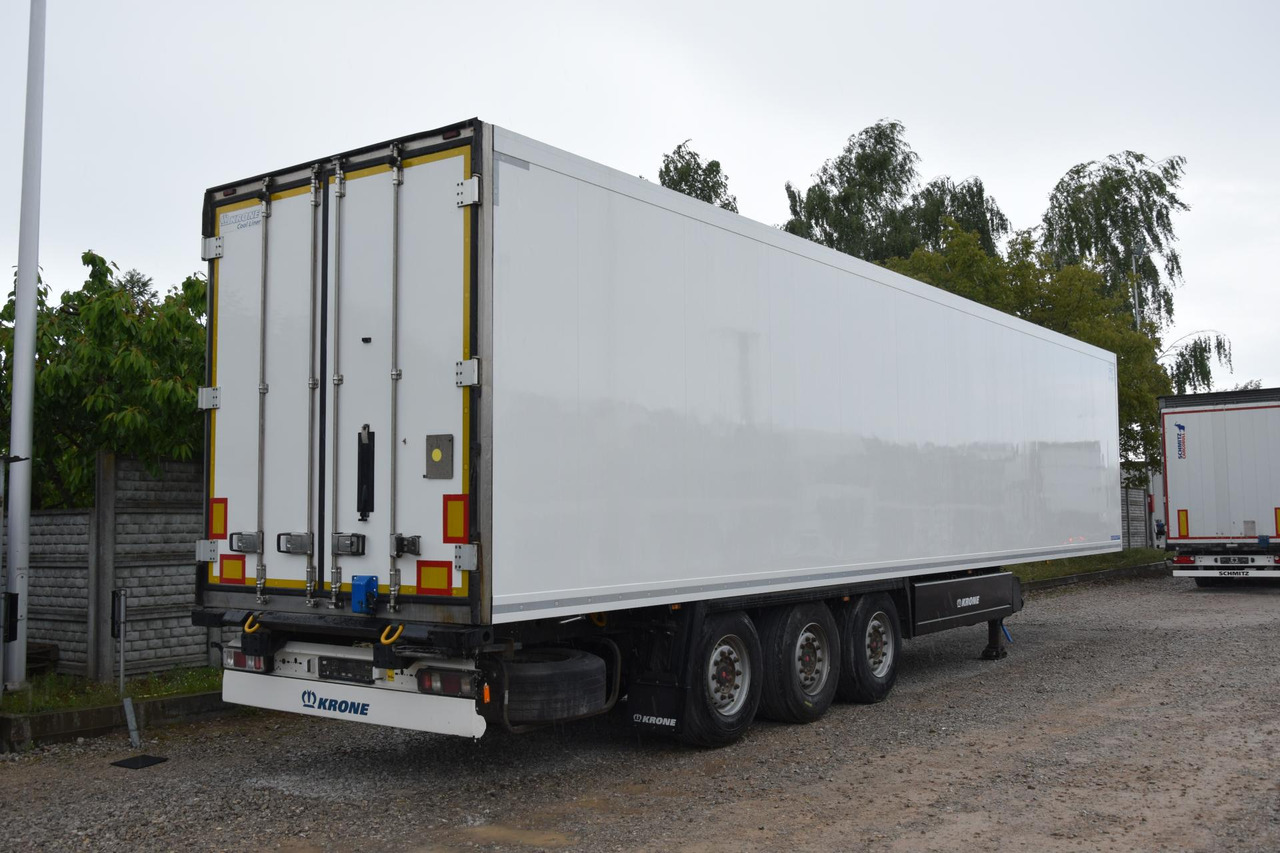

Insulated double rear doors with 4 steel lockrods

FP insulated sidewall, 60 mm

Tool box, PVC, left side behind the axles, dimensions

approx. 650x490x450 mm

Fuel tank plastic, for approximately 240 ltr., tank opening

on both sides, cover with cylinder lock

EBS-braking system, 2S/2M, 2 sensors on 1 axle

1 pair(s) of load lock rails, horizontally, inserted into side walls

Disc brakes 430 mm

incl. 2 temperature sensor

Ventilation flap, at the front wall, at top of left side, Ventilation flap, small, at rear, right si

Lift axle control for 1st axle

Low noise aluminium floor, suitable for PIEK floor, tested

according to CSC/EN 283, reinforced at re

Spare wheel holder as fixed basket for one spare wheel,

right side, behind axles, 2nd spare wheel ho

1 spare wheel

(6+1) tyres - 385/65R22.5

12 sets of double deck rails, type Airline, inserted into side walls, full length 1.600 mm from the

Loading capacity 33 / 66 euro paletts

Internal Length/width/heigth - 1331cm/246cm/265cm

Gross vehicle weight: 39.000 kg

Own weight - 8 813 kg

3 axles

Pallet box for 24 Euro-pallets
