New Low loader semi-trailer Meusburger 2-Achs-Jumbo-Tiefbett mit Planenaufbau

Frame:

Welded steel construction with frame offset at the front and at the rear and low deck without

chamfer at the rear.

Frame neck + plate 225 mm.

Low deck is designed for point loading 25 to onto 5 m.

Outer frame closed on the outside with lashing rings welded in for lashing.

2“-King-pin, changeable.

Rear plate = rear underrun.

U-beam at the rear for ramps.

Axles:

BPW-low deck-axles, each axle with 10 to axle load.

Air suspension with lifting and lowering device, total stroke 260 mm (-60/+200 mm), ECASsystem

for two coupling (+ 100 mm).

Cam break 300/200 mm, asbestos-free brake linings.

Automatic brake adjuster.

Steering:

both axles hydraulic forced steering through fifth wheel coupling.

Rims and wheels:

8 steel disc wheels, 10-holes, with offset (132 mm), centered.

8 wheels 235/75 R 17,5, tubeless.

Mudguards:

Metal mudguards with mud flaps.

Braking system:

Two line brakes with EBS.

EBS-braking system (WABCO 4S2M).

Spring controlled parking brake.

Duo-Matic-connection and additional standard-connection (red/yellow).

Electric system:

According to the law.

24 Volt - 1x 15-pin + 2x 7-pin sockets at the front.

2x 5-chamber-rear-lights in the rear plate.

Holder for warning light.

Side marker lights (LED).

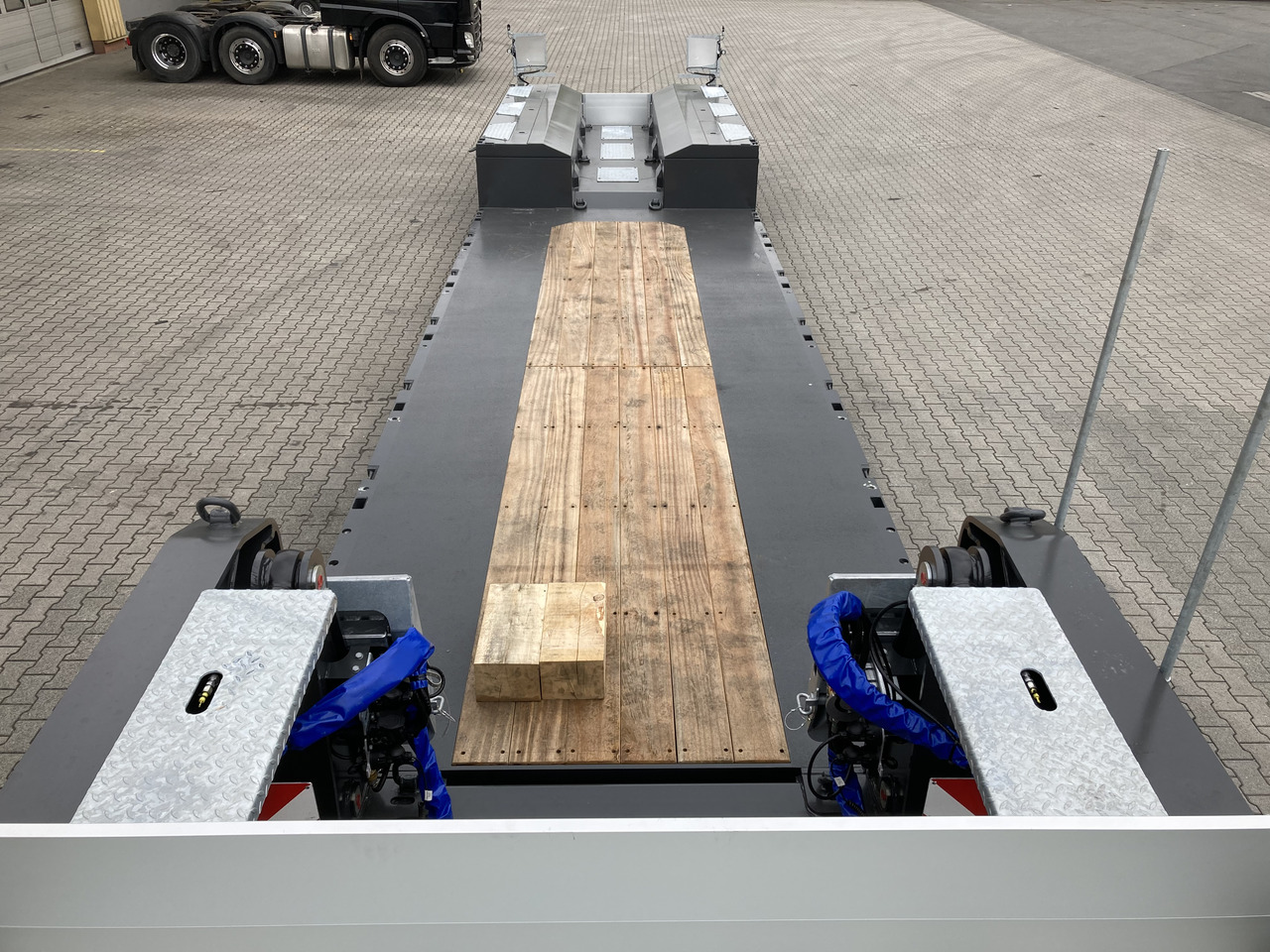

Floor:

27 mm plate floor.

12 pairs of lashing rings (RUD) welded in the outer frame

6 pairs of lashing eyes in the outer frame of the low deck.

2x storage compartments with cover in the floor of the low deck.

Bulkhead:

25 mm aluminium-hollow profiles till the lower edge of the roof with integrated clamping device

for the tarpaulin.

Sliding tarpaulin:

Sliding tarpaulins on both sides with vertical and horizontal belts welded in (distance ca. 600

mm) and stainless fastener.

Adjustable belts (top dead centre) till a loading width of 4.000 mm including extension of the

tarpaulin with push buttons and velcro fastener.

Extension of the tarpaulin: in direction of travel: 300 mm, in the height: 750 mm.

Eyelets included for loose extension of the tarpaulin (without loose extension).

1 pair of vertical pockets for tarpaulin (length ca. 1.000 mm, in the low bed at the front offset).

With pockets for the belts.

Rear wall:

Steel rear frame with lateral devices the mounting of the tarpaulin.

Aluminium double bam doors (25 mm thick).

Both doors with door-stays.

Left and right side extendable, 1.250 mm on each side.

Front corner posts:

In roof height, bolted at the front side.

Central pillars:

3 pairs of continunously sliding folding columns.

Pillars are displaced by means of trolley over the entire length.

Central pillars in low deck mounted at the rear platform.

Roof:

EDSCHA-sliding roof (zinc plated) movable in both sides, without slope.

Rear frame cross bar, with swing-out function.

PVC-tarpaulin roof without customs locking.

Manual hydraulic lifting roof on both sides, stroke 450 mm.

Positions for lifting roof: front 18x25 and rear 18x25.

Side extension of the roof at the front, 900 mm each side.

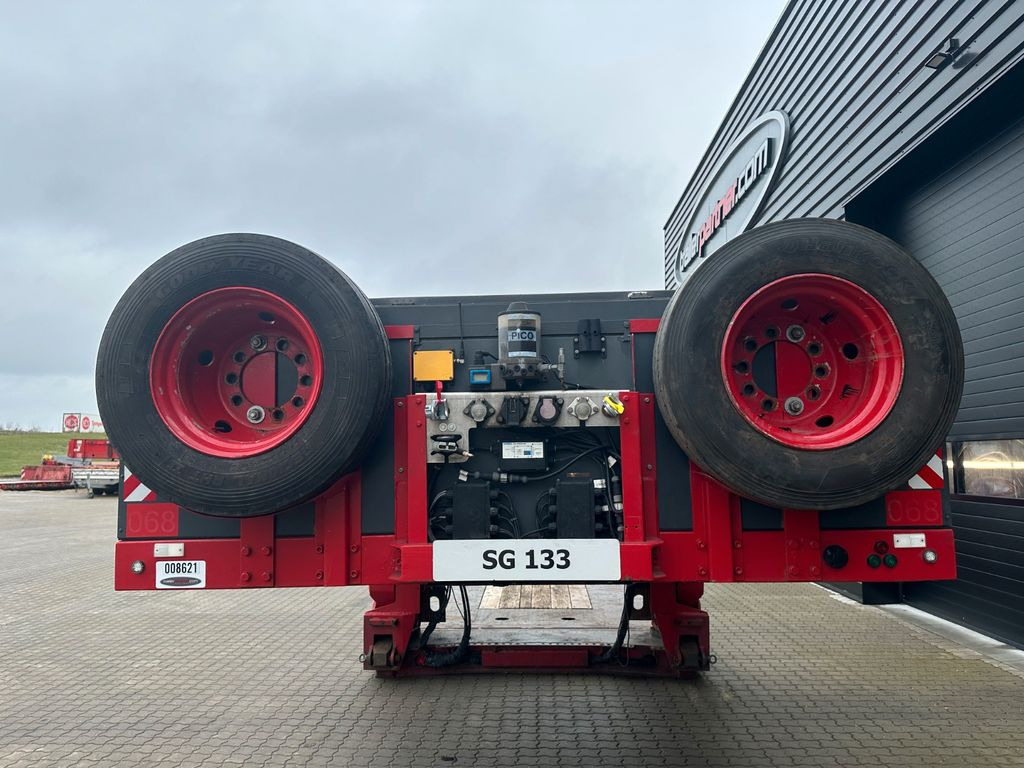

Spare wheel holder:

1 spare wheel holder at the front wall with manual winch.

Additional equioment:

4x wheel chokes with holder.

2x ECE-plates.

4x extendable warning plates.

1x aluminium ladder (length: 2.500 mm) at the front.

2 rows of Alu-arches.

Night parking plate and ADR panel at the rear.

Central lubrication system.

Painting:

Steel pellets cleaning and primer.

Frame: novagrey MB 7350.

Front wall and rear wall: RAL 9006 silver.

Tarpaulin: RAL 9006 silver.

Rims: silver.

Plastic parts: black.
