Lease a QINGDAO PROMISING ZL10F Small Wheel Loader with CE

Published: 28d

Published: 28d

Set leasing payments schedule

Initial down payment

10%

20%

30%

40%

50%

Leasing period, months

Annual leasing rate: 10%

10%

15%

≈7 250EUR/Month*

Initial price 7 250 EUR. Price excl. VAT

* The data from this simulator is indicative and non-contractual to avoid misunderstandings.

Brand

QINGDAO PROMISING

Reference number

20230323ZL10F

Year of manufacture

2025

Mileage

10 km

VIN

8429510000

New

Condition

new

First registration date

07.03.2024

Hours

5 h

Weight

3300 kg

Net weight

3300 kg

Gross weight

4300 kg

Payload

1000 kg

Operating weight

3300 kg

Length

4750 mm

Width

1730 mm

Height

2500 mm

Capacity

0.6 m³

Transport length

4750 mm

Transport width

1730 mm

Transport height

2500 mm

Max speed

25 km/h

Power requirement

36 kW

Lifting capacity

1000 kg

Lift height

2600 mm

Turning radius

4000 mm

Hydraulics

Voltage

24V

Color

red, grey

Location

China, 24th Floor Tianzhi Building, Qingdao Free Trade Zone

Engine/driveline

emission class

Euro 2

fuel

diesel

engine cylinders

power output

48 hp

engine

CHANGCHAI ZN490Q

gearbox

automatic

transmission

4 gears

battery

24V

hydraulic tank capacity

80 L

number of hydraulic valves

working pressure

16 MPa

Chassis/suspension

suspension

spring

axle configuration

4x2

number of axles

2-axle

all-wheel drive

wheel base

1580 mm

brakes

drum

front tires

12.00-16-14PR, 100 %

rear tires

100 %, 12.00-16-14PR

tires

100 %, 12.00-16-14PR

track width

1400 mm

new tires

fuel tank

60 l

Body/superstructure

body

Articulated Frame

body material

steel

loading width

850 mm

loading height

2600 mm

loading volume

0.6 m³

tank volume

60 L

number of tank compartments

tool box

Cab/interior

cab type

day cab

cab model

Enclosed cab

right hand drive

working lights

heater

radio

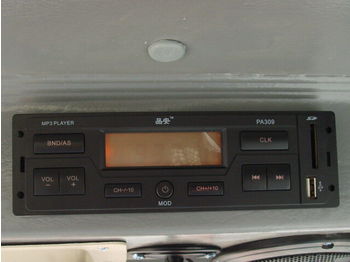

MP3

Additional

warranty

certifications

Equipment

equipment

bucket

More information

1.0T automatic transmission loader, 1 ton automatic transmission wheel loader, 1.0Ton front end loader, 1.0T CE wheel loader, 1.0T front wheel loader, 1.0 Ton front loader, 1.0 Ton small loader, 1.0 Ton mini loader, 1.0 Ton compact loader, 1.0T articulated small loader, 1.0 Ton small front loader, 1.0 T mini front loader, 1000kg front loader, 1000kg small loader, 1000kg mini loader, 1000kg compact loader, 1000kg front end loader, 1000kg small front loader, 1000kg mini front loader, CE approved 1.0T front wheel loader, CE certified 1.0 ton front end wheel loader, 1.0 ton wheel loader with CE mark, CE front loader with 1.0T capacity, CE front end loader with 1.0 ton capacity, CE small loader with 1000kg capacity, 1.0T wheel loader, 1.0ton wheel loader, 1.0 ton wheel loader, 1.0T compact wheel loader, 1000kg loaders, mini wheel loaders, new wheel loader, 4WD wheel loader 1 ton Capacity automatic transmission wheel loader with enclosed cabin, adjustable suspension seat, digital radio & MP3 player, top beacon; and optional hydraulic joystick control, hydraulic quick coupler, reversing camera, and air conditioner Mini Wheel Loader ZL10F Technical Specifications

1. Rated Load: 1000kg

2. Operating Weight: 3500kg

3. Rated Bucket Capacity: 0.7CBM

4. Bucket Width: 1700mm

5. Max. Breakout Force: 26KN

6. Max. Dumping Height: 2600mm

7. Max. Dumping Reach: 850mm

8. Raising Time: < 4.0s

9. Min. Ground Clearance: 230mm

10. Overall Dimensions (L x W x H): 4750x1730x2500mm

11. Min. Turning Radius: 4000mm

12. Engine Model: CHANGCHAI ZN490B

13. Engine Type: Four-cylinder, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine

14. Rated Engine Power: 39kW

15. Rated Engine Speed: 2400rpm

16. Min. Fuel Consumption Rate: 230g/kW.h

17. Transmission Mode: YJ240 Hydraulic Torque Converter

18. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

19. Max. Speed: 25km/h

20. Mode of Axle: ISUZU Drive Axle

21. Wheel Tread: 1400mm

22. Wheel Base: 1580mm

23. Drive Mode: 4-wheel Drive

24. Hydraulic System Working Pressure: 16Mpa

25. Hydraulic System Working Pump Type: Gear Pump

26. Service Brake: Foot Pedal Drum Brake on 4 Wheels

27. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake

28. Tyre Type Specification: 8.25-16-14PR

29. Front Tyre Pressure: 0.40Mpa

30. Rear Tyre Pressure: 0.35Mpa Optional EURO5 Engine: 36.8kw YUNNEI DEF20CFF4 Engine Optional Wider Tyres: 31x15.5-15PR Optional Parts and Functions: Canopy, Open Cabin, FOPS/ROPS, Tilting Cabin, Hydraulic Joystick, Air Conditioner, Colour Coded Electronic Gear Shift Button on Joystick, Gear Shift Lever with Electronic Control, Reversing Camera, Quick Hitch, Extra Hydraulic Lines, LED Lights, and Floating Function, etc. Note:

1. The technical specifications are for standard models only.

2. Other optional accessories and requirements are available upon request.

3. All photos are for reference only. Machines shown may include optional parts.

4. All specifications and design characteristics are subject to change without prior notice.

5. For all available loader attachments, please refer to our Loader Attachments Catalogue.

6. Equipped with hydraulic quick coupler, your wheel loader can be easily and conveniently switched from one attachment to another to save your time and labor. Equipped with skid steer (Bobcat) quick coupler or Euro Standard quick coupler, you can use all your existing attachments with our wheel loader.
