Paper cutting machine Horizon HT-30 | 2.25 Mio | 2008

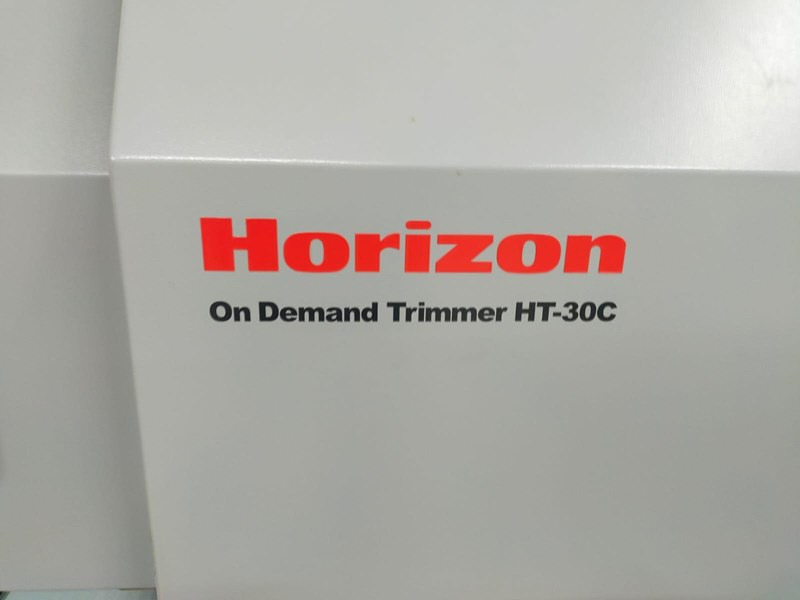

HORIZON HT-30, Three-Side Trimmer, used

The Horizon HT-30 is a highly robust three-side trimmer known for its exceptional reliability, making it one of the most popular machines in print finishing – a guarantee of quality that often sells out quickly due to high demand.

Key Features:

- Usage: Solo (offline)

- User-Friendly: Easy settings via touchscreen

- The Horizon HT-30 cuts books fully automatically, eliminating the need for constant operator presence. After loading the books, the HT-30 signals when cutting is complete, ready for unloading and reloading

- Memory Function: 40 memory slots for repeat jobs

- Operation: Stacks and cuts up to 10 copies simultaneously, fully automatic

- Cutting Process: Knife works in two directions for damage-free cuts

- Conveyor: Transports trimmed books to a stacking area

- Durable Construction: Built for long-lasting use

Specifications:

- Untrimmed Book Size: Max: 320 x 235 x 51 mm; Min: 152 x 136 x 1 mm

- Trimmed Book Size: Max: 305 x 230 x 51 mm; Min: 148 x 134 x 1 mm

- Trim Range: Max: 99 mm; Min: 2 mm

- Pre-Stack Depth: 300 mm

- Speed: Up to 520 books per hour

- Pressure: Max 8 kN

- Noise Level: Max 70 dB

- Dimensions: 2,350 x 1,160 x 1,370 mm

- Power Supply: 400V / 50Hz - 1.25kW

- Weight: 1,020 kg
