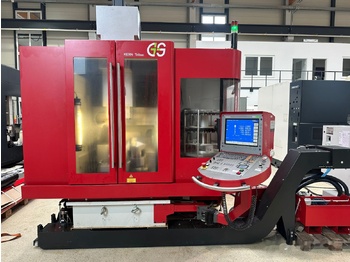

Kern Triton
Control : Heidenhain iTNC 530
Speed : 40000 rpm
Movement X/Y/Z : 500/500/400 mm
Tool holder : HSK-E40
____________
Description
In General
Control:Heidenhain iTNC 530
Traverse paths X/Y/Z:500/500/400 mm
Speed:40,000 rpm
Tool holder:HSK-E40
Spindle
Technologie:Motorspindel
Drehzahl:40.000 U/min
Leistung:max. 47 kW
Drehmoment:max. 23,6 Nm
Werkzeugaufnahme:HSK-E40
NC-Swivel rotary table
Manufacturer:Peiseler
Type:ZASD 160
A-axis:-10°/+100°
C-axis 360°
Clamping surface:160 mm
Clamping system:EROWA
Tool magazin
Technology:disc magazine
Number of stations:50
Tool changer:Double gripper
Equipment
Measuring systems:Direct in all axes
Chip disposal:Chip conveyor
Coolant supply:IKZ system
Workpiece measurement:Renishaw preparation
Tool measurement:BLUM laser
Oil mist separator:Electrostatic
Set-up operation:Electronic handwheel
